CLICK GRIDPRO GM202BBK INTMDT SWITCH MOD 20AX BLACK
|
£12.42 (INC. VAT: £14.90) |
GRIDPRO® offers a comprehensive range of modules in multiple finishes to offer ultimate flexibility. The GRIDPRO® range will complement your existing Click installation, as the range was specifically designed to seamlessly match our existing ranges of Click® accessories.
Only 3 left!
Description
- 20AX Intermediate Switch Modules
- Material Composition Rocker Switch: Urea or Urea + Stainless Steel Cover (Ingot)
- Cover, Insert & Rear Housing: Nylon
- Terminals: Brass
- Terminal Screws: Steel & Yellow Passivated
- Silver “on-lay” Copper / Brass Contacts
- Voltage 250V~ 50Hz
- Current Rating 20AX (suitable for inductive loads)
- Terminal Size 5mm ø
- Torque Value 1.2Nm
- Cable Size 2 x 4mm2, 3 x 2.5mm2 or 1 x 6mm2
- Back Box Depth 25mm – 47mm (Deco, Deco+, Mode, Polar)
- 35mm – 47mm (Define, Definity)
- Modular Yes
- Warranty 10 Years
- Anti Microbial Certified Yes (Non-Ingot Switches Only)
- IP Rating IP20
- Operational Temperature -5o to +40oC
- Standards The Low Voltage Directive 2014/35/EU
- BS EN 60669-1:1999 + A1:2002 + A2:2008
Additional information
You must be logged in to post a review.
Products related to this item
-
01COASTG9
£12.99 (INC. VAT: £15.59) Add
COAST G9 LED PENLIGHT TORCH -
XXX10948
£3.02 (INC. VAT: £3.62) Add

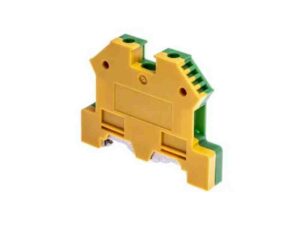

RS PRO 2 WAY SCREW DOWN TOP HAT -
